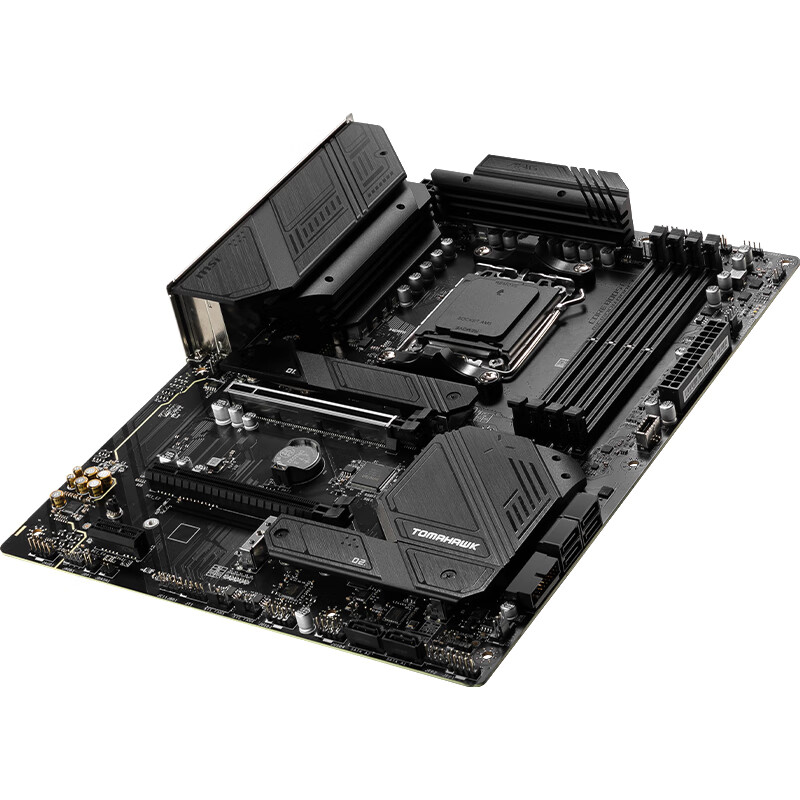

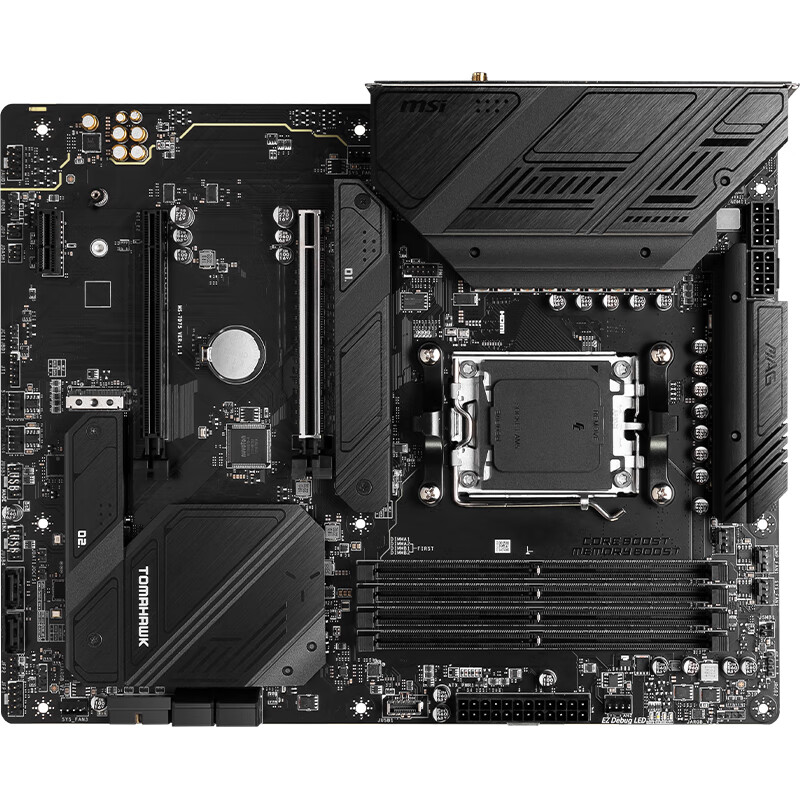

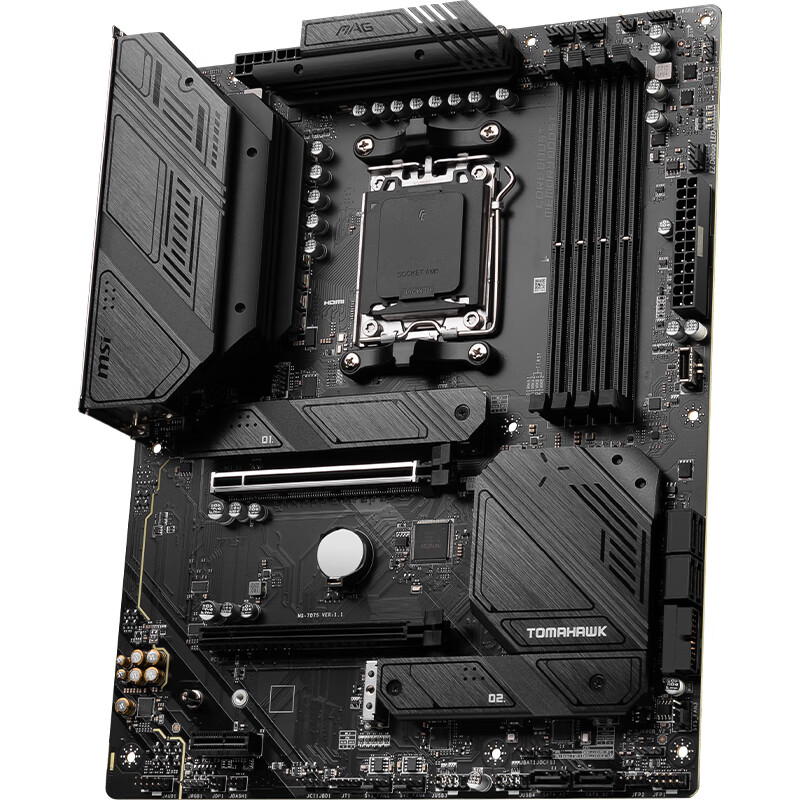

MSI MAG B650 TOMAHAWK WiFi DDR5 Motherboard – AM5, ATX, PCIe 4.0, M.2, USB 3.2
Description:
The MSI MAG B650 TOMAHAWK WiFi DDR5 is a high-performance ATX motherboard tailored for AMD Ryzen 7000 series processors on the latest AM5 platform. With support for DDR5 memory, PCIe 4.0, Gen4 M.2 storage, Wi-Fi 6E, and 2.5G LAN, this board offers outstanding performance, future-ready connectivity, and enhanced thermal solutions for gamers and PC enthusiasts.
Key Features:-
Socket AM5 Support: Compatible with AMD Ryzen 7000 Series CPUs
-
DDR5 Memory: 4 DIMMs, up to 128GB total capacity
-
PCIe 4.0 Expansion: Full bandwidth support for latest GPUs and SSDs
-
Wi-Fi 6E & 2.5Gb LAN: Blazing-fast wired and wireless connectivity
-
M.2 Gen4 & SATA: Flexible and high-speed storage options
-
USB 3.2 Gen2x2: Fast data transfer with modern peripherals
-
ATX Form Factor: Ideal for high-performance gaming setups
-
Premium Thermal Design: Extended heatsinks and M.2 Shield Frozr
Technical Specification
Specification Details Model MSI MAG B650 TOMAHAWK WIFI DDR5 Brand MSI Form Factor ATX Chipset AMD B650 CPU Socket AM5 CPU Support AMD Ryzen 7000 Series Memory Support 4× DDR5 DIMM Slots, up to 128GB Memory Channels Dual Channel Graphics Support Integrated via CPU, HDMI, DisplayPort (No VGA/DVI) Expansion Slots 1× PCIe 4.0 x16, 2× PCIe x1 Storage Interfaces 2× M.2 Gen4, 4× SATA 6Gb/s USB Ports USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0 Networking Intel Wi-Fi 6E, 2.5Gbps Ethernet Audio Realtek ALC4080 High Definition Audio Power Connector 24-pin + 8+4-pin EPS Cooling Features Extended heatsinks, M.2 Shield Frozr, 6-layer PCB Lighting RGB headers (Mystic Light support) Package Includes Motherboard, WiFi antennas, SATA cables, I/O shield
-
