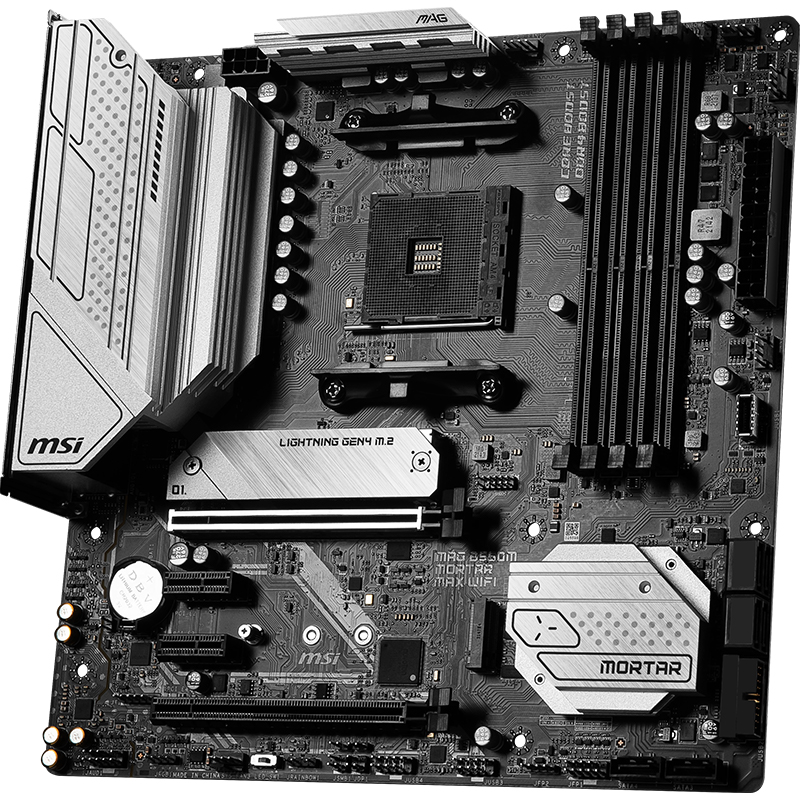

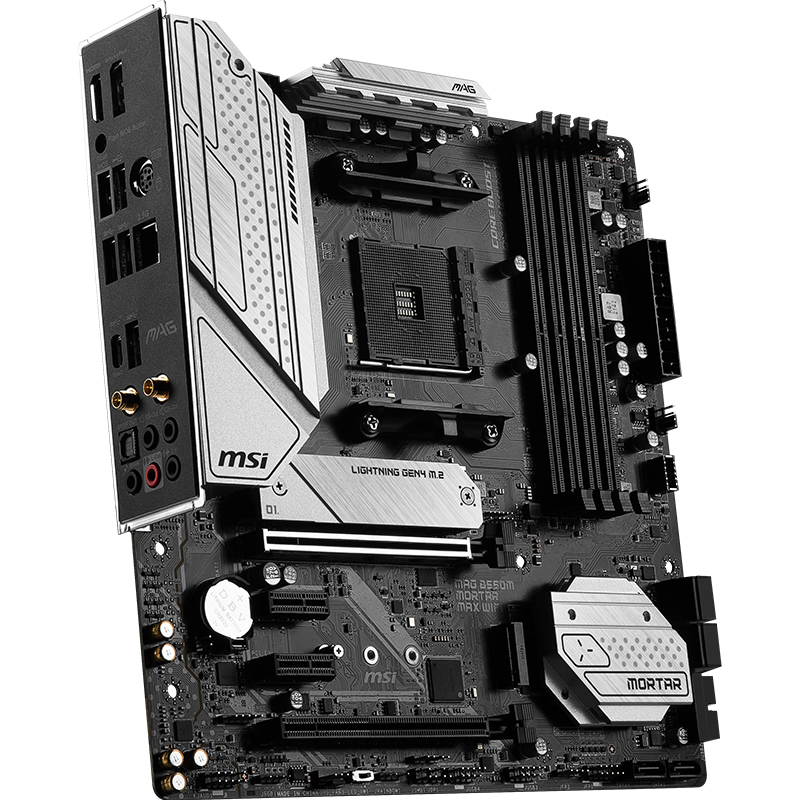

MSI MAG B550M MORTAR MAX WiFi – AM4 mATX Motherboard, DDR4, PCIe 4.0, M.2, HDMI
Description:
The MSI MAG B550M MORTAR MAX WiFi is a compact and powerful micro-ATX motherboard designed for AMD Ryzen 3000, 4000G, and 5000 series processors on the AM4 socket. Featuring support for DDR4 memory, PCIe 4.0 GPUs, dual M.2 slots, and built-in Wi-Fi, this board delivers high-end performance in a space-saving form factor. With military-grade components, optimized thermal design, and advanced connectivity, it's ideal for gaming, creative, and multitasking builds.
Key Features:-
AM4 Socket Support: Compatible with Ryzen 3000 / 4000G / 5000 series CPUs
-
DDR4 Memory Ready: Up to 64GB across 4 DIMM slots
-
PCIe 4.0 x16: High-speed GPU connectivity
-
Dual M.2 Slots: For ultra-fast NVMe SSDs
-
Built-In Wi-Fi & Ethernet: Fast wireless and wired networking
-
Robust VRM & Cooling: Aluminum heatsinks and efficient layout
-
Micro-ATX Form Factor: Ideal for mid-size gaming builds
Technical Specification
Specification Details Model MSI MAG B550M MORTAR MAX WIFI Brand MSI Form Factor Micro-ATX Chipset AMD B550 CPU Socket AM4 CPU Support AMD Ryzen 3000 / 4000G / 5000 Series Memory Support 4× DDR4 DIMM Slots, up to 64GB Memory Channels Dual Channel Graphics Support Integrated via APU (HDMI, VGA) Expansion Slots 1× PCIe 4.0 x16, 1× PCIe 3.0 x1 Storage Interfaces 2× M.2 (Gen4 + Gen3), 4× SATA 6Gb/s USB Ports USB 3.2 Gen1, USB 2.0 Networking Intel Wi-Fi, 2.5Gb Ethernet Audio Realtek ALC1200 7.1-Channel HD Audio Power Connector 24-pin + 8-pin EPS Cooling Features Extended heatsinks, Fan headers, PWM/DC control Package Includes Motherboard, Antennas, SATA Cables, Manual -
